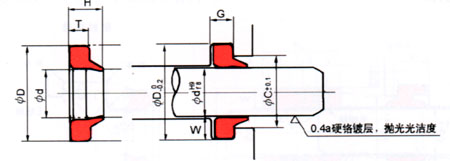

| drl系列防塵密封圈 ○
toughrethane® < 華爾卡號 p9625 - drl >

單位：mm
| 編 號 | d | d | t | h | c |
| w |
| drl
6.3 | 6.3 | 14.9 | 4.2 | 7 | 10.5 | 4.4 | 4.3 |
| drl
7.1 | 7.1 | 15.9 | 4.2 | 7 | 11.5 | 4.4 | 4.4 |
| drl
8 | 8 | 16.9 | 4.2 | 7 | 12.5 | 4.4 | 4.45 |
| drl
9 | 9 | 17.9 | 4.2 | 7 | 13.5 | 4.4 | 4.45 |
| drl
10 | 10 | 18.9 | 4.2 | 7 | 14.2 | 4.4 | 4.45 |
| drl
11.2 | 11.2 | 19.9 | 4.2 | 7 | 15.5 | 4.4 | 4.35 |
| drl
12.5 | 12.5 | 21.9 | 4.2 | 7 | 17.5 | 4.4 | 4.7 |
| drl
14 | 14 | 22.9 | 4.2 | 7 | 18.5 | 4.4 | 4.45 |
| drl
15 | 15 | 23.9 | 4.2 | 7 | 19.5 | 4.4 | 4.45 |
| drl
16 | 16 | 24.9 | 4.2 | 7 | 20.5 | 4.4 | 4.45 |
| drl
18 | 18 | 28.9 | 4.2 | 7 | 22.9 | 4.4 | 5.45 |
| drl
20 | 20 | 30.9 | 4.2 | 7 | 24.9 | 4.4 | 5.45 |
| drl
21.5 | 21.5 | 30.4 | 4.2 | 7 | 26 | 4.4 | 4.45 |
| drl
22.4 | 22.4 | 33.3 | 5.2 | 9 | 27.3 | 4.4 | 5.45 |
| drl
25 | 25 | 35.9 | 4.2 | 7 | 29.9 | 4.4 | 5.45 |
| drl
27 | 27 | 37.9 | 5.2 | 9 | 31.9 | 4.4 | 5.45 |
| drl
28 | 28 | 38.9 | 4.2 | 7 | 32.9 | 4.4 | 5.45 |
| drl
30 | 30 | 40.9 | 4.2 | 7 | 34.9 | 4.4 | 5.45 |
| drl
31.5 | 31.5 | 42.9 | 4.2 | 7 | 36.8 | 4.4 | 5.7 |
| drl
32 | 32 | 43 | 6.2 | 10 | 37 | 6.4 | 5.5 |
| drl
35 | 35 | 46 | 5.2 | 8 | 40 | 5.4 | 5.5 |
| drl35.5 | 35.5 | 46.5 | 5.2 | 8 | 40.5 | 5.4 | 5.5 |
| drl
38 | 38 | 49 | 6.2 | 10 | 43 | 6.4 | 5.5 |
| drl
40 | 40 | 51 | 5.2 | 8 | 45 | 5.4 | 5.5 |
| drl
45 | 45 | 56 | 5.2 | 8 | 50 | 5.4 | 5.5 |
| drl
47 | 47 | 58 | 6.2 | 10 | 52 | 6.4 | 5.5 |
| drl
48 | 48 | 59 | 5.2 | 8 | 53 | 5.4 | 5.5 |
| drl
50 | 50 | 61 | 5.2 | 8 | 57 | 5.4 | 5.5 |
| drl
53 | 53 | 66 | 5.2 | 8 | 58.8 | 5.4 | 6.5 |
| drl
55 | 55 | 68 | 5.2 | 8 | 60.8 | 5.4 | 6.5 |
| drl
56 | 56 | 69 | 5.2 | 8 | 61.8 | 5.4 | 6.5 |
| drl
60 | 60 | 73 | 5.2 | 8 | 65.8 | 5.4 | 6.5 |
| drl
63 | 63 | 76 | 5.2 | 8 | 68.8 | 5.4 | 6.5 |
| drl
64 | 64 | 77.1 | 7.2 | 11 | 69.9 | 7.4 | 6.55 |
| drl
65 | 65 | 78 | 5.2 | 8 | 70.8 | 5.4 | 6.5 |
| drl
67 | 67 | 80 | 5.2 | 8 | 72.8 | 5.4 | 6.5 |
| drl
70 | 70 | 83 | 5.2 | 8 | 75.8 | 5.4 | 6.5 |
| drl
71 | 71 | 84 | 5.2 | 8 | 76.8 | 5.4 | 6.5 |
| drl
75 | 75 | 88 | 5.2 | 8 | 80.8 | 5.4 | 6.5 |
| drl
80 | 80 | 93 | 5.2 | 8 | 85.8 | 5.4 | 6.5 |
| drl
85 | 85 | 98.2 | 5.2 | 8 | 91 | 5.4 | 6.6 |
| drl
90 | 90 | 103.2 | 5.2 | 8 | 96 | 5.4 | 6.6 |
| | 丁腈橡膠和碳氟橡膠可按要求提供。
